There are four tools for defining text annotations to a drawing. From left to right in the Text tool palette they are:

Horizontal Text

Text Along Curve

Text At Angle

Bounding Box Text

Text properties, such as font, size, color, orientation, and more, are controlled on the Inspector.

Horizontal Text

The Horizontal Text command creates horizontal (left to right) text at a user specified location.

Using the Text tool

Click location for text.

Type characters for text string.

Click mouse to end. (Hit Return to continue placing new text entities.)

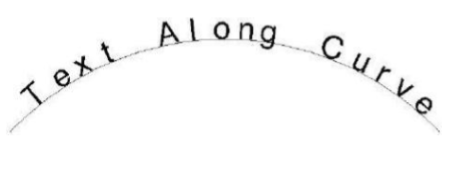

Along Curve Text

Text can be created with respect to a curve with the Along Curve command. The text is associative to the curve.

Using the Along Curve Text tool

Select a curve for the text path.

Click two points that specify the text up direction. Type characters for text string.

Click mouse to end.

At Angle Text

Text can also be created at any angle. The angle uses the right hand rule about the construction plane normal.

Using the At Angle Text tool

Use the Data Entry Fields to specify text angle.

Click location for text.

Type characters for text string.

Click mouse to end.

Box Text

Box Text is defined by two diagonal points used to specify the width and height of a text box. Text is automatically wrapped to the width. The new text box also supports left, right, and center justifications. In addition, you can double click on the text to edit directly on the screen. On-screen editing provides support for cutting, pasting, and copying into the text box. For example, you can copy a paragraph from another application and paste it into a text box.
