(Available only in Platinum)

Default UI Menu: Modify/Modify 3D Objects/Facet Editing/Shell Solid

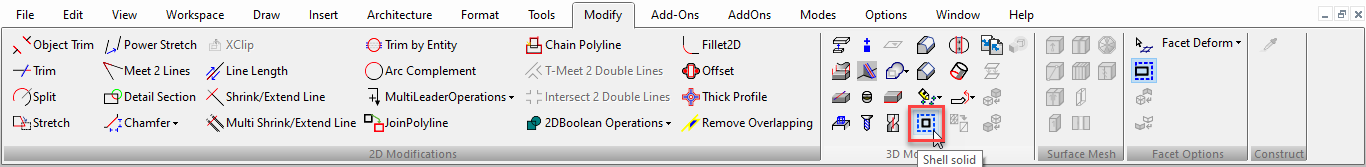

Ribbon UI Menu:

Creates a shell of a specified thickness from a single solid (not surface) object. The new faces are creating by offsetting existing faces inside or outside. This example will use the solid shown below. (It is actually two solids, one Lofting and one Simple Extrude, combined into one solid using 3D Add.)

age

1. Activate Shell Solid. Select the object, which turns magenta.
2. Select any faces you want to remain open. Faces are highlighted in green when the cursor passes over them.

Open faces, when selected, are indicated by a thick magenta line. You can use the Page Down or Page Up key to select the next face.

1. Enter the shell thickness in the Inspector Bar. A positive value created an outward shell, and a negative value creates an inward shell.
2. Select Finish from the local menu or Inspector Bar.

Viewing the results in render mode shows the shelling results.

After the shell operation is complete, you can edit it in the Selection Info palette.

Sheet Thicken:

Apply the Sheet Thicken to Sheet ACIS® entities to obtain Sheet Thicken entities. Use the option ‘Perform in both directions’ to apply by Shell Solid. Part tree option must be enabled in ACIS in drawing setup otherwise sheet thicken will not work.

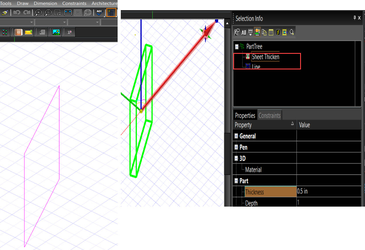

i) Apply thickness to an unclosed line or a 2D polyline/ spline from selection info palette or properties window in 3D option.

ii) Enable Shell Solid and select ‘Perform in both directions’ from the inspector bar.

Note: The selected object’s Solid mode should be solid. You can set Solid mode in the selection info palette or Properties box in the 3D tab.

Local Menu Option:

Perform in both directions: Enables Sheet thickens on both sides of the solid.

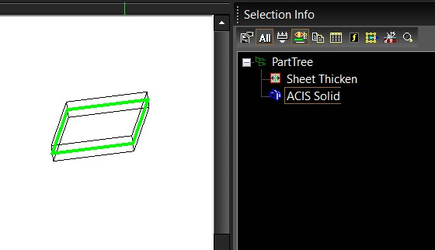

Sheet Thicken can also be performed on ACIS solid object.

i) Draw any 2D object.

ii) Apply surface from profile from solid/ surface toolbar.

iii) Enable Shell Solid and select ‘Perform in both directions’ from the inspector bar or local menu.

Sheet thicken operation is performed on both sides.
