(Available in all TurboCAD LTE Variants)

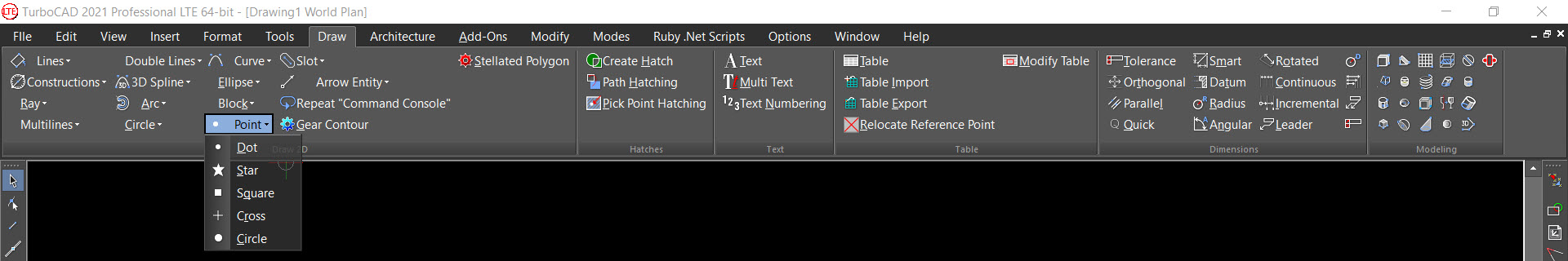

Default UI Menu:

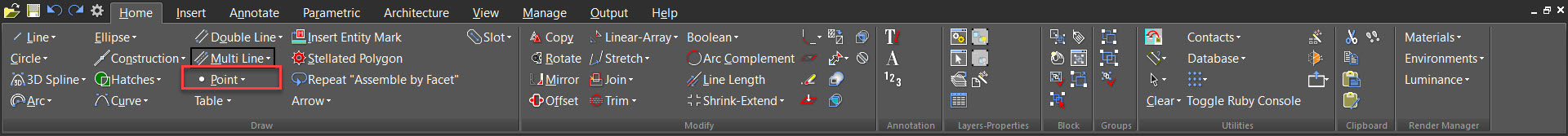

Ribbon UI Menu:

You can display the Point and Arrow toolbar by right-clicking in any toolbar area and selecting Point and Arrow from the toolbars.

These tools are also available on the fly-out toolbar from the Drawing Tools.

Use Point to create several different types of point markers: dot, square, cross, star, or circle. By default, a point in 2D space. If you want to create a 3D point, select 3D Point from the Inspector Bar or local menu.

Point Properties

The Point page is included in the Properties window when a point is selected, or when the point tool is active.

Color: Select the point color. Point Type: Select dot, star, square, cross, circle, or the AutoCAD point. Size: Sets the width and height of the point. This value affects all types of points except Dot, which is always displayed at a minimal size.
