Shortcut Key: =

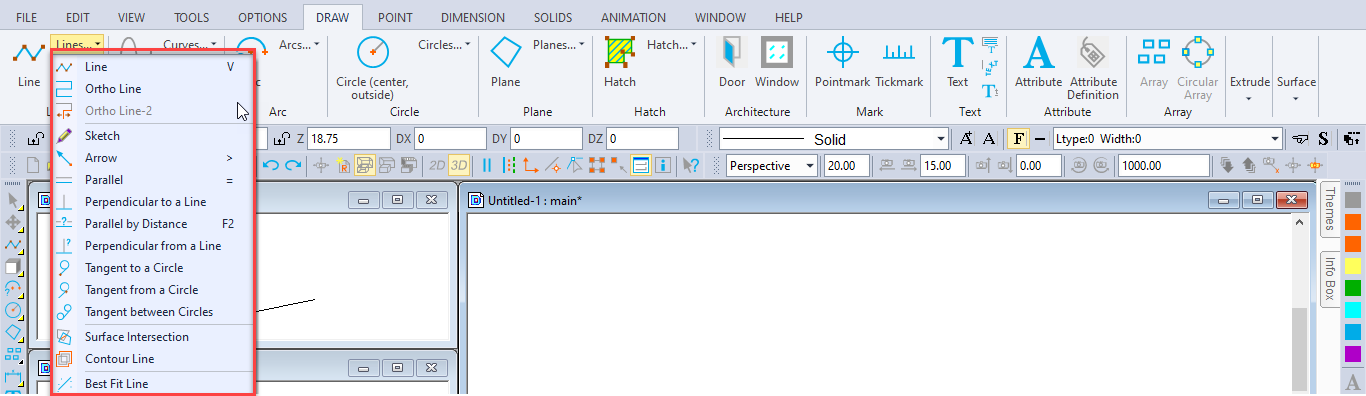

Toolbox Icon:

Draws a line parallel to any existing line, curve,or arc.

Point 1: Existing line

Point 2: Location for parallel line

This command works on 3D lines as well as lines that lie on a single plane.

Example: Draw a line parallel to a multi- segment line.

Select the Parallel command. Set a point on the line and move the cursor away from it. A rubber- band line is drawn parallel to the first line at the current cursor distance. When the line is where you want it, set the second point.
