Label commands are used to assign text to specific objects.

Pullout

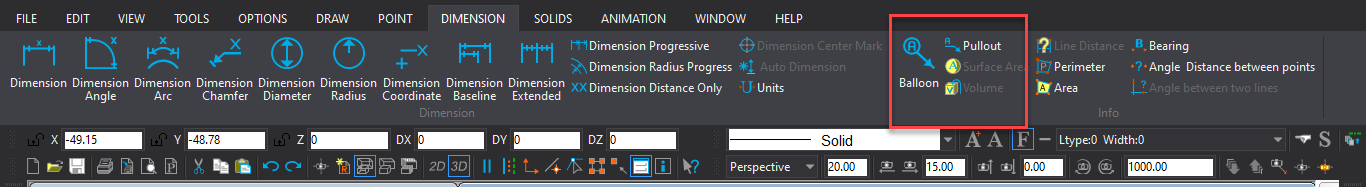

Menu: Dimension / Info / Pullout

Toolbox Icon:

Inserts arrows and descriptive text into a drawing.

Point 1: Arrowhead

Point 2-n: Path of arrow. The last point marks the text location.

Enter the text in the Pullout window.

Click the Arrowhead button for further options.

For details.

Set a point for the point of the arrow, and one or more other points for the body of the arrow. Set the last point for the location of the text. Press Enter to end the command and draw the pullout.

Balloon

Menu: Dimension / Info / Balloon

Toolbox Icon:

Draws a text balloon pointing to a specific object. It is useful for identifying part numbers or item numbers in diagrams. You may specify the size of the balloon and the text to include; the text is sized to fit inside the balloon.

Point 1: Point of arrowhead

Points 2-n: Points along arrow. Last point is center of balloon.

Enter the desired text and balloon size in the Balloon window.

Click the Arrowhead button for further options. For details.

Set a point for the tip of the arrowhead and one or more points for the body of the arrow. The last point set is used as the center of the balloon.
