Default UI Menu: Architecture/ Section/Elevation

Ribbon UI Menu:

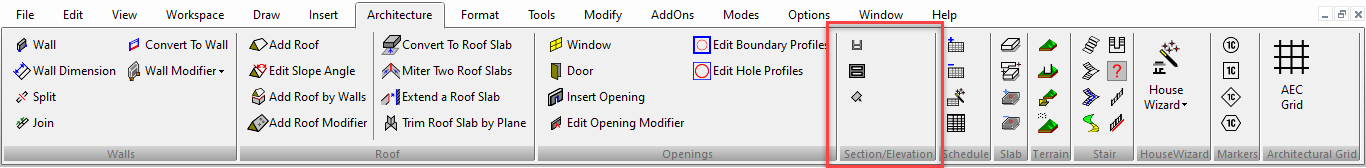

There are three tools used to create Section-Elevations.

Horizontal

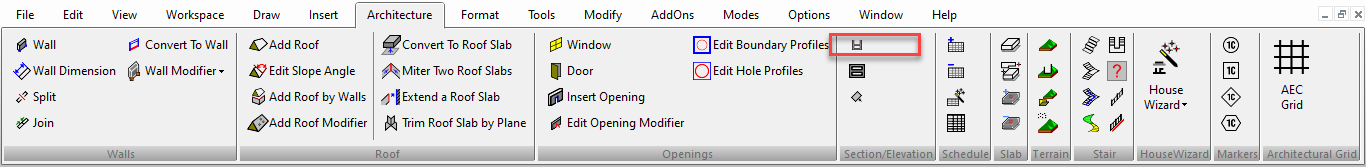

Default UI Menu: Architecture/ Section/Elevation / Horizontal

Ribbon UI Menu:

Create a horizontal section.

1. Create a 3D element. Now use section line tool (See Section Line) that cross the pertinent 3D elements.
2. Select horizontal section tool. Right click to open the local menu. Select either 2D Section /Elevation or 3D Section /Elevation.

Alternatively, you can also select 2D Section /Elevation or 3D Section /Elevation from the inspector bar.

1. Select the Section line.
2. Select the pertinent 3D elements.
3. Select Finish from the local menu or in the inspector bar. You will then have the section and will be prompted to select section position. Click in the drawing to place the section.

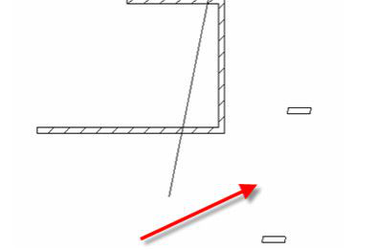

You can edit the size, orientation and position of the section line using the edit tool. (see Edit Tool)

Section Line

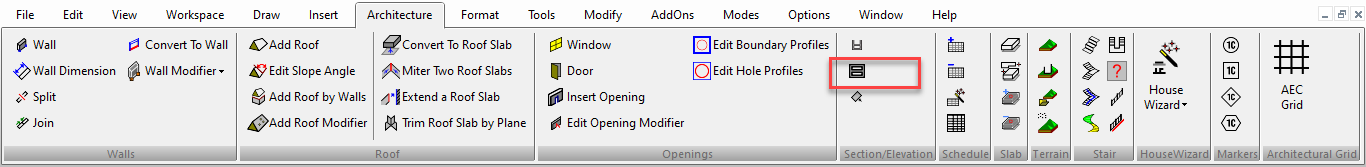

Default UI Menu: Architecture/ Section/Elevation / Section Line

Ribbon UI Menu:

Create a section line.

1. Define the segment start point.
2. Define the end point, or specify the length and angle in the inspector bar.

Vertical

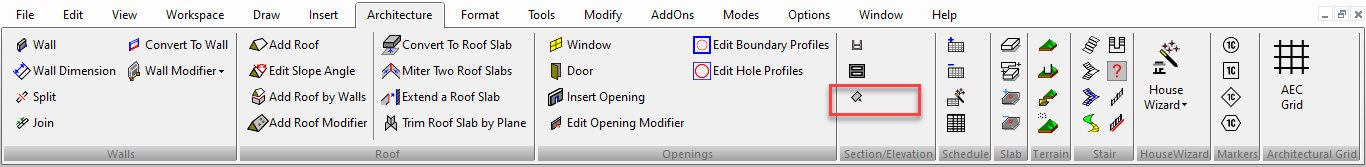

Default UI Menu: Architecture/ Section/Elevation / Vertical

Ribbon UI Menu:

Create a vertical section.

1. Create a 3D element. Now use the section line tool (See Section Line) to cross the pertinent 3D elements.

1. Select vertical section tool. Right click to open the local menu. Select either 2D Section /Elevation or 3D Section /Elevation.

Alternatively, you can also select 2D Section /Elevation or 3D Section /Elevation in the inspector bar.

1. Select the Section line.
2. Select the pertinent 3D elements.
3. Select Finish from local menu or in the inspector bar. You will then have the section and will be prompted to select section position. Click in the drawing to place the section.

You can edit the size, orientation and position of the section line using edit tool.
