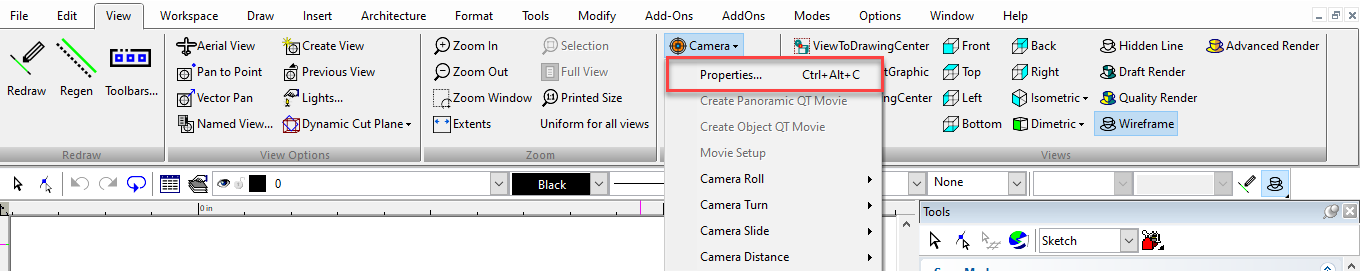

Default UI Menu: View/Camera/Properties

Ribbon UI Menu:

By default, these tools are also available on the local (right-click) menu. When creating the first render of a model, the easiest way is to select one of the render modes and accept the default lights.

Tip: You can modify the lights by selecting View / Lights. For more details, see Lights

There are several ways to modify and enhance your rendering:

• Adjust render properties (see Render (Camera) Properties)
• Modify or add lights (see Lights)
• Define object materials (see Materials)
• Create a render scene environment

You can use all 3D tools (as well as most 3D editing tools) in both wireframe and render modes. To render only specific objects, select those objects before selecting the render mode. To return to Wireframe or another render mode, click the relevant icon or use the View / Camera menu.

Quality Rendering

Creates the most photorealistic image for shading, color, reflection, texture, and other qualities. For complex models, this type of rendering can be slow.

Draft Rendering

Quickly creates a rendered view. The parameters are more limited than with Quality rendering, and the view will not be as detailed. The OpenGL and TurboLux rendering types are available for this mode.

Hidden Line

Eliminates the hidden lines from the view.

Advanced Render- RenderStyles

Note: There are detailed help files available from the Editors for Luminances, Environments, Materials, and Render Styles. These detailed help files describe the function of all settings, and the effect of value changes to parameters in these dialogs

Status Bar Memory Display

Once you initiate any Rendering mode for a selected object; the TurboCAD status bar displays the respective memory usage along with the processing time.

For example, if you have just initialized Quality Rendering, the status bar located at the lower left corner of the screen displays the value of the memory being used during the process (as shown above) and the total memory used after completion (as shown below). The memory is calculated in Megabytes.

Creating and Editing Objects in Render Mode

All 3D geometry and most 3D editing tools can be used while in render mode. You can edit objects using Select Edit and Edit Tool, perform 3D Boolean commands (with the exception of the Boolean operation 3D Slice) and manipulate the workplane. Tools for creating and modifying 2D geometry cannot be used in render mode. This includes text and tools for inserting and manipulating pictures.

Tip: If you need access to 2D profiles for creating profile objects, you can see them in render mode if you check Foreground Wireframe / Nonrenderable objects in the Camera Properties (View / Camera / Properties) for the various render modes.

Drag and drop maneuvers are also not available in render mode. Therefore, you cannot drag objects in or out of the Blocks or Symbols Palettes (though the Format menu commands are available). You also cannot drag objects into other drawings.
