Default UI Menu: Tools/Bill of Material/Generate Weight Report

Ribbon UI Menu:

A feature that can generate weight reports of the solid objects with custom properties inserted.

To Generate a Weight Report and export it as a Bill of Materials (BOM):

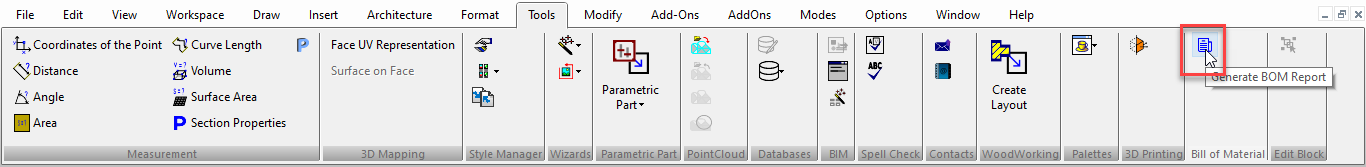

1. For one or more 3D Solid Objects that have had Mass Properties assigned to them, from the Tools/Measurement menu click on the ‘Generate Weight Report’ icon
2. The following report appears:

To Save the BOM Report, click on the ‘Export to CSV’ button. The ‘Save as’ menu will appear and the report can be saved to the user’s computer.
