Add labels to drawing to callout important structural elevations when creating construction documentation.

To Draw Marker Line

1. On the Detail plan toolbar, click the Marker Line

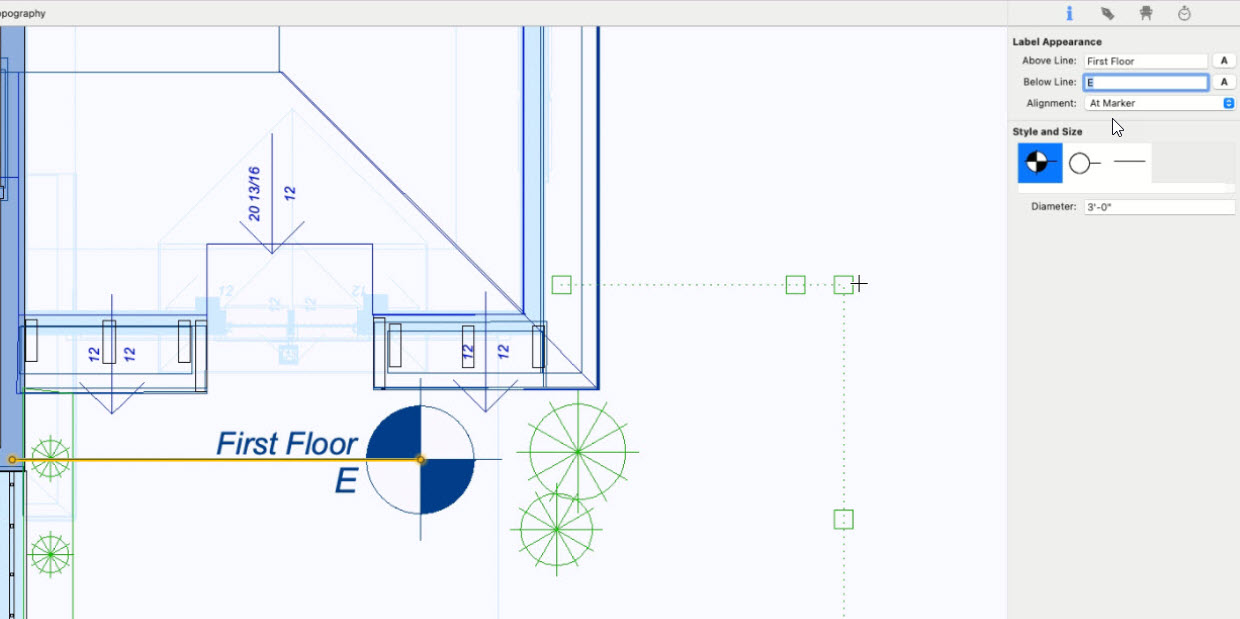

2. Use the Click-and-Drag drawing method to set the angle and length for the shape.

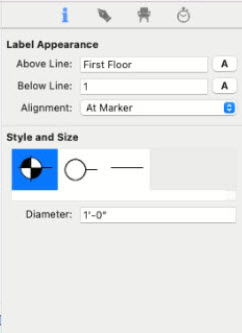

Properties of Marker Line

• You can add text in the above line or below the line text box. Font type and size can be changed from the Font button.
• You can change the alignment of the marker to different points.
• You can change the shape of the Marker by clicking on the shape drop-down button.
• You can change the size of the text in marker or fit text in a marker by using fit text check-box
