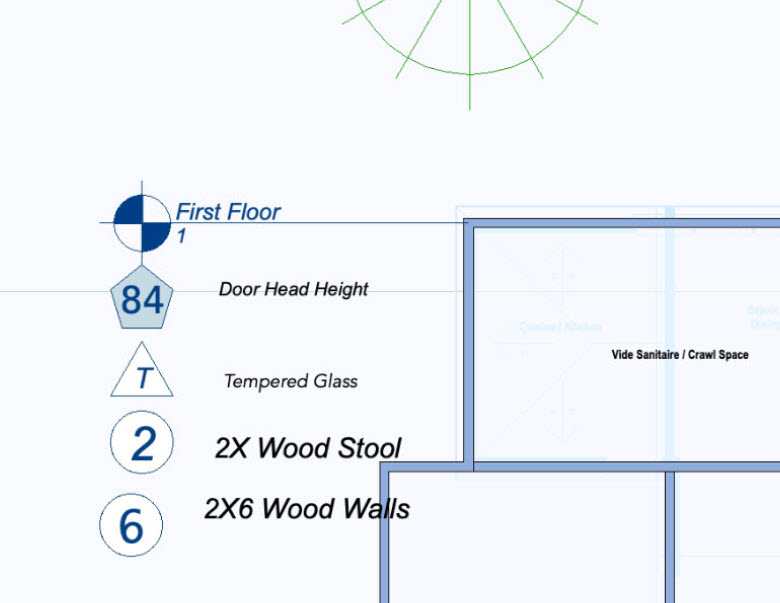

Add markers to identify building specifications such as framing requirements, pier locations, etc. Marker size automatically adjusts to fit the text. Variety of marker shapes available.

To Draw Note Marker

1- On the Detail plan toolbar, click the Note Marker.

2- Use the Click Once to Place Drawing method to place the Note Marker in your design.

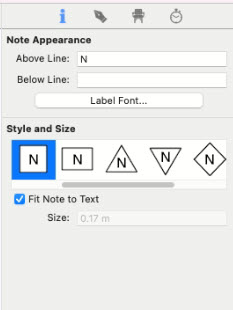

Marker Properties

• You can add text in the above line or below the line text box. Font size and style can be changed from the Font button
• You can change the shape of the Marker by clicking on the shape drop-down button.
• You can change the size of the text in marker or fit text in a marker by using fit text check-box
