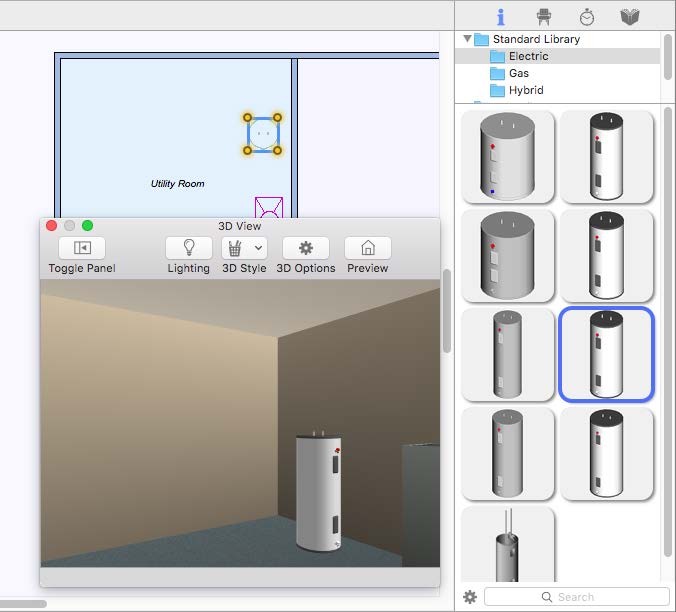

Adding a hot water heater to your home plan is as simple as a mouse click. Dimensions are displayed as you move the cursor around the design window, which indicate the distance from the center of the object to the nearest wall or other component. When the tool is active you can choose a water heater style from the Properties tab in the right sidebar. You can also change the style after the water heater has been placed by selecting the water heater in your drawing and choosing a different style.

To add a hot water heater

1 Choose the Water Heater button from the Plumbing Tools group.

2 Use the Click Once to Place drawing method to place the water heater in your design.
