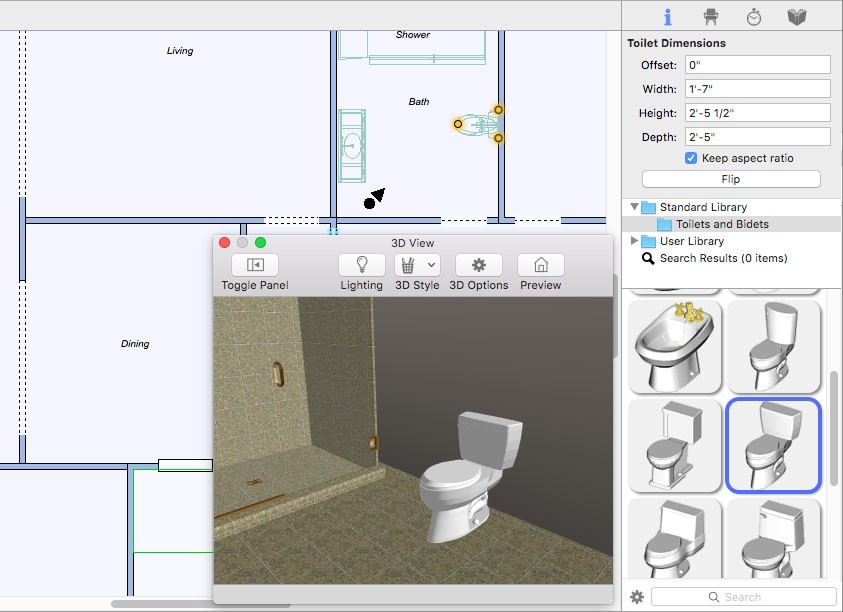

Architect 3D makes it simple to add plumbing to your home plan. Dimension lines automatically appear, making it easy to place objects a specific distance from a neighboring plumbing fixture or wall segment. You’ll notice that, when placing toilets, the object is automatically “tracked” to the wall segment, making accurate placement simple.

When the tool is active you can choose the style you want on the Properties pane. You can also change the style after the toilet has been placed by selecting the toilet in your drawing and choosing a different style.

To place toilets

1 Choose the Toilet button from the Plumbing Tools group.

2 Use the Drag Along Wall drawing method to position the toilet on the side of a wall where you want it and release to place.
