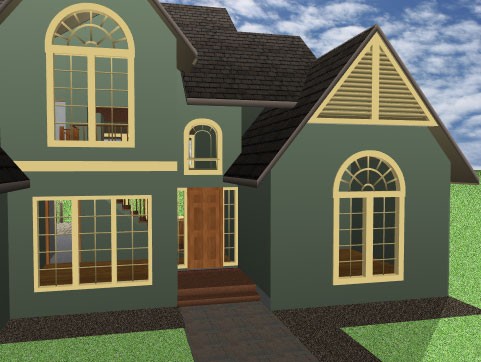

Like doors and cased openings, there are an extensive variety of windows available in Architect 3D. They are automatically dimensioned to neighboring walls, doors, and windows. There are a number of window styles available in Architect 3D as well as a custom library, and they are all placed in the same manner.

You can combine windows side-by-side or stacked to create almost any configuration or place custom style windows. Window styles are described in “Window Properties” Choose the window style before or after you place the window.

To add a window

1 Choose the Window button from the Floor Tools group. Its properties appear on the Properties pane.

2 Use the Drag Along Wall drawing method to position the component on wall where you want it and release to place.
