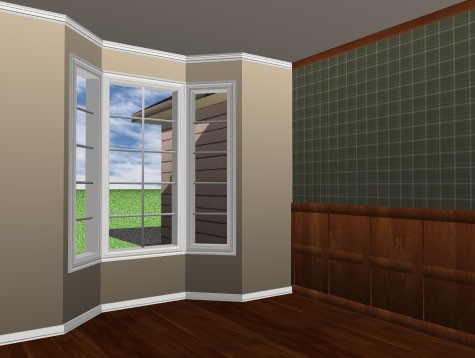

It is easy to add base trim, crown molding, or library paneling for an elegant appearance, or you can use wainscotting so you can apply two different materials on one wall. You can also add casing molding around doors and windows and even apply trim to the top of cabinets for a completely unique look.

Trim is applied by dragging the trim onto a surface in the 3D view, so you must have a 3D view open to access the trims styles. You can change a trim style by applying a new style right on top of an existing style and even remove trim after it has been applied.

The Base Trim Library and Crown Trim Library include categories of trim, including window and door casing styles. The Library Paneling library includes various heights of paneling to apply to your design.

If SmartWand is enabled, you can choose to apply to the individual surface or to all similar surfaces. For more information, see “Using the SmartWand”

To apply paint and materials to trim, see “Applying Paint Colors” or see “Applying Building Materials”

To apply trim and library paneling

1 Open a 3D view and navigate so you can see the surface where you want to apply trim.

2 In the right sidebar, click the Content tab and choose Trim from the pop-up menu. The Trim libraries appear.

Some of the library categories are organized into sub-categories, contained within disclosure triangles, the Base Trim library, for example.

3 Choose the library you want and its contents appear in the Preview Bar.

4 Scroll through the trim previews and drag the one you want onto a wall in the 3D view. The trim is applied.

To apply a series of the same trim

You can apply a series of the same trim to multiple surfaces using Auto-Click Placement. For more information see “AutoClick Placement”

To remove wall trim

1 Open a 3D view and navigate so you can see the surface where you want to remove trim.

2 In the right sidebar, click the Content tab and choose Trim from the pop-up menu. The Trim libraries appear.

Some of the library categories are organized into sub-categories, contained within disclosure triangles, the Base Trim library, for example. Each Trim category contains its own remove trim style.

3 Choose the library for the type of trim you want to remove and drag the Remove Trim style onto the wall where you want that trim removed.
