Available in DesignCAD 3D Max and DesignCAD 2D Express*

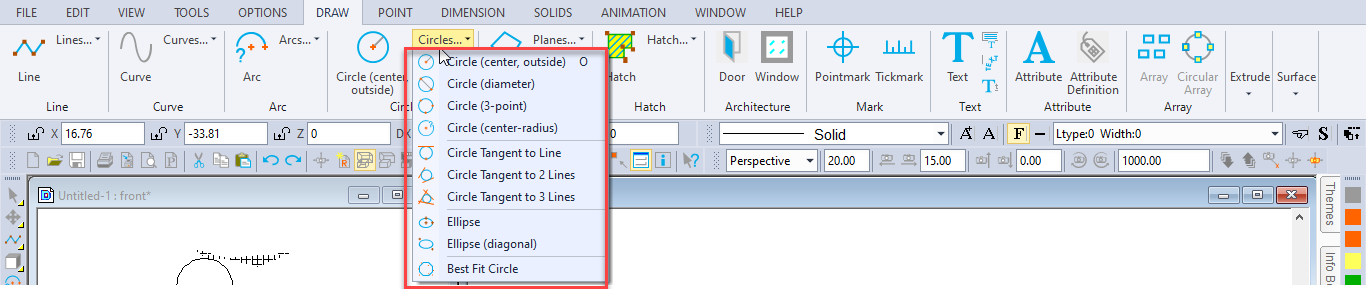

Menu: Draw / Circles / Best Fit Circle

Shortcut Key:

Toolbox Icon:

The Best Circle tool draws a circle that is best-fitted within a set of user-defined points.

The Best Circle tool is a perfect for tracing precise curves over rough images. It allows the designer to over sample a collection of points to account for fuzzy data.

Enter an arbitrary number of points to create a best fit circle terminating with a double click.

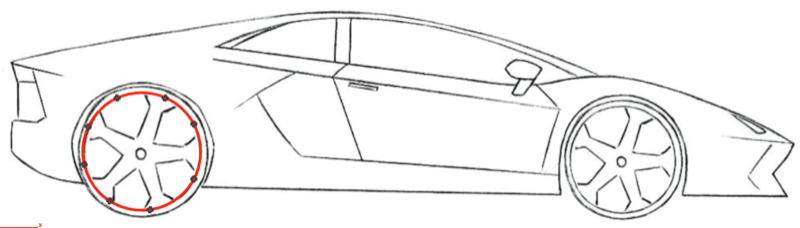

Below image shows the use of best fit circle in an image.
