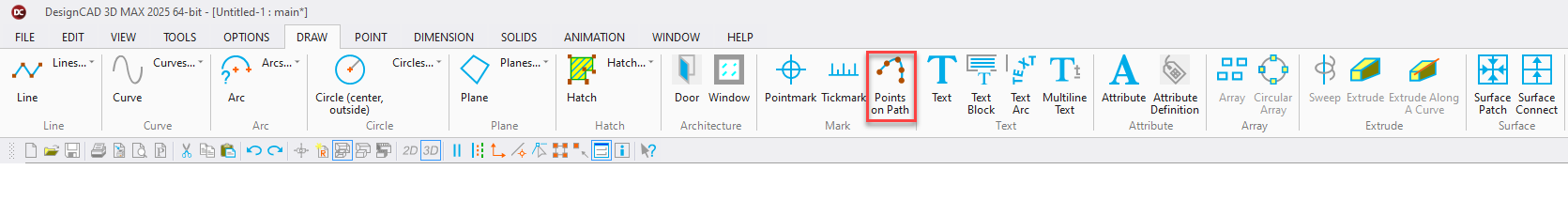

Points on Path tool in DesignCAD gives users the ability to put points on any path, including curves, splines, lines, vectors, planes, polygons, arcs and circles. There are 2 modes of drawing points on the path:

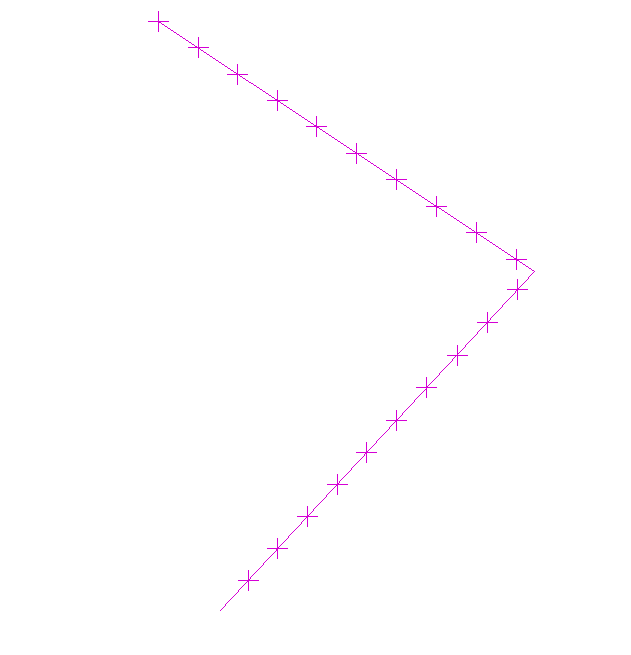

1. Distance – User can select how much the points should be separated and the tool will mark points all along the selected entity.

​

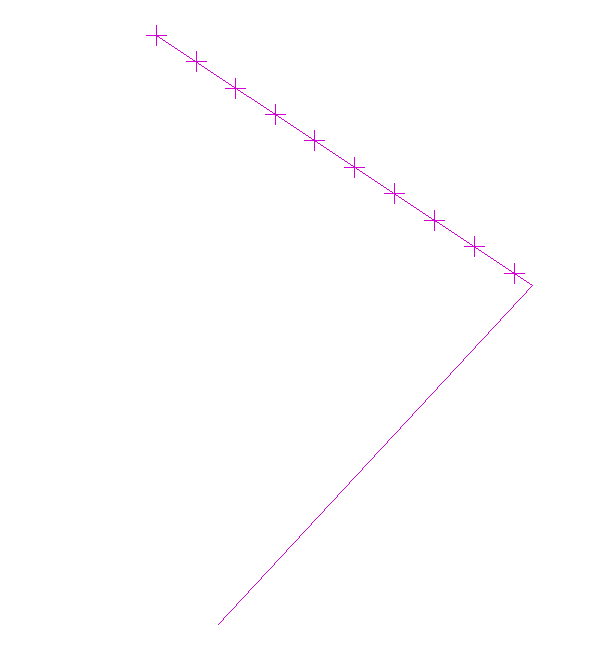

1. Number of points and Distance – User can select how many points it needs on the entity and the tool will only mark that specific number of points on the entity.

​
