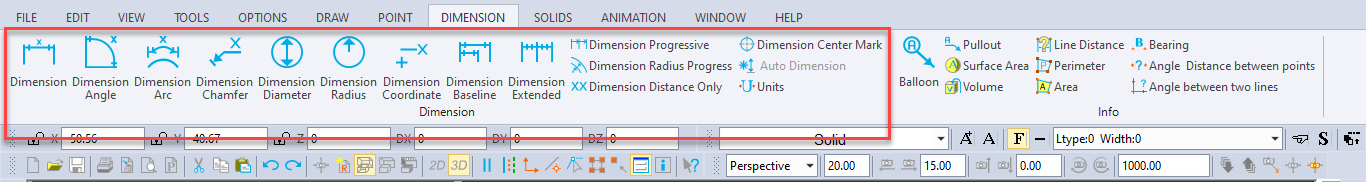

Toolbox Icon:

Dimensions the arc length of an arc from endpoint to endpoint.

Point 1: Arc to be dimensioned

Text location

NOTE: The options available in this command are the same ones available in the Dimension command. You can also set dimension parameters globally in the program Options.
