Menu: Tools/3D Print

This tool determines if a mesh is 3D printable or not. The the result is based on the common tests for 3D printability.

General Information includes:

o Number of Facets

o Number of Edges

o Min XYZ/Max XYZ extents

o Length, Width, Height

o Maximum Length

o Minimum Length

Tests include:

o Duplicate facets

o Collapsed facets

o Closed and watertight

o Manifold

o Number of Parts/Shells

o Normal orientation

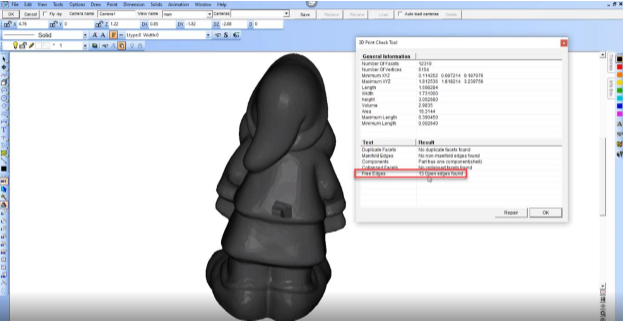

The images below show how this tool functions. The tool was run on some of the mesh objects. The screenshots contain the results.



Mesh Repair Tool:

In DesignCAD 3D MAX, user can repair the open edges and duplicate facets of a mesh. FoImages that show how this feature can be used.

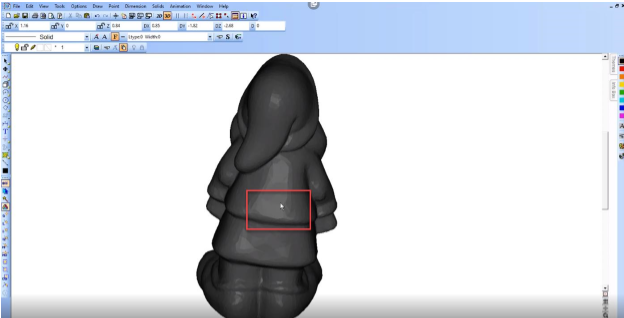

Before Repair:

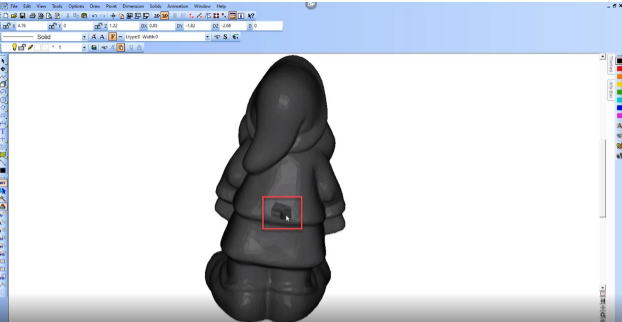

After Repair:
