Menu: Solids / Rounded Cylinder

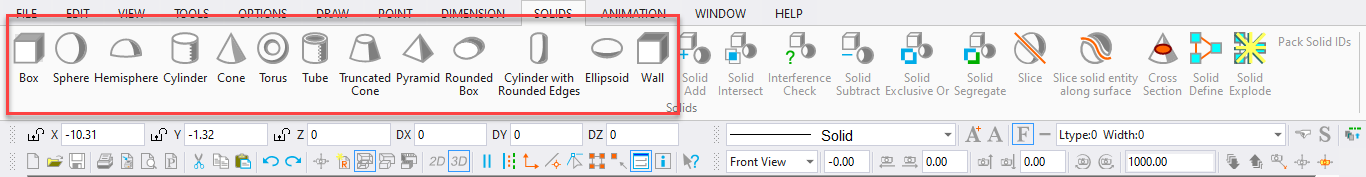

Toolbox Icon:

Draws a cylinder with rounding applied to one or both ends.

Point 1: Center of the first end

Point 2: Point on diameter of the first end

Point 3: Point on the diameter of the second end

Specify the number of facets (or “faces”) for the corners and edges, and the radii of each cylinder end.

The Number of Sections determines the smoothness of the rounding.
