In this Task

• Corners of the rectangle will be blended using a Fillet radius.

Before you Start

• Different fillet radii will be used in this task. Always input the new value into the Radius field.

Take Note

• The resulting arc of the blend will be created as a separate drawing object, connected by its endpoints to the associated lines.

Fillet Two Lines

Modify > Fillet > Fillet Two Lines

The Fillet tool creates an arc or radius between 2 lines, circles or arcs to a specific radius.

Fillet blends will be applied to 3 corners shown in the illustration at the end of this task.

Select the Fillet Two Lines tool from the toolbar or use Modify > Fillet > Fillet Two Lines.

Use the keyboard TAB key to access the Radius field, then input 15.

Select the 2 points on the line shown in the illustration below.

Selecting diagonal points for the fillet

The result is shown below.

Fillet of 15 created

TAB to the Radius field and input 8, then select the points on the lines shown below.

Selecting diagonal points for the second fillet

Repeat this for the lower right corners, creating a radius of 3, below.

Right click and select DeSelect to discontinue the command.

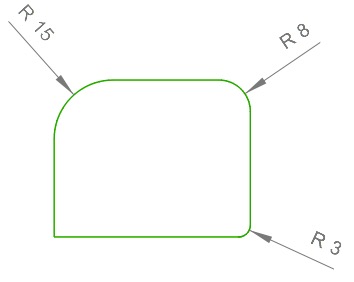

Rectangle with filleted corners
