Window | Attributes and BOM

The table containing the bill of material attributes now allows for font size and type to be specified. The number of decimals in the Item numbers can also be specified.

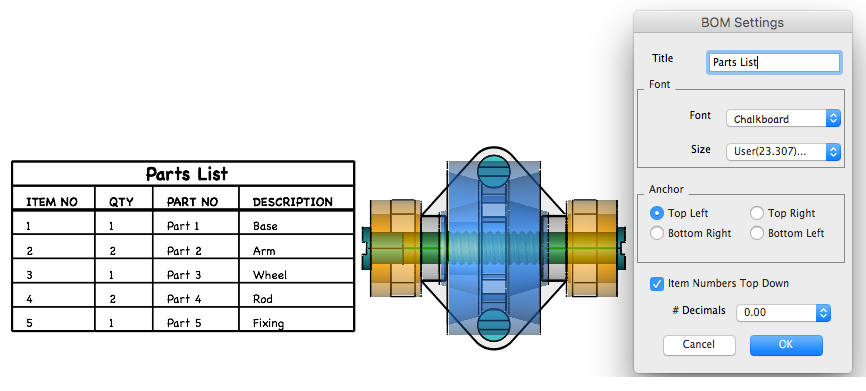

Specifying the font type, size and number of decimal units in the Parts List BOM

Repair Curves

Modify toolbar

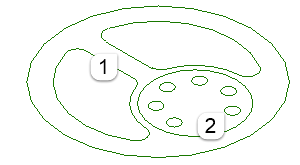

This tool provides an integrity check of all gaps and duplicates in a collection of curves. In the example below, points 1 and 2 contain duplicates of the same object which are concealed in most views.

Modeling features such as extrusions and lathes cannot be performed when duplicates and gaps appear in the profile and such errors cannot be easily found when there are multiple curves.

Duplicates

Duplicate objects hidden beneath line and circle

In the example below, the entire collection of curves was selected for repair.

Duplicates found and identified in selection

Gaps

In the example below, the line does not connect to the circle by a distance of .250, therefore when the tolerance is set to anything above .250, it shows a gap to repair.
