Updating Properties

The Deep Select tool is used to select the Pocket Hole part within the primary part, shown above. Use the relative fields to update the position or size of the pocket hole.

In the example below, the distance from the edge and the Tip Diameter were updated. The result is shown below.

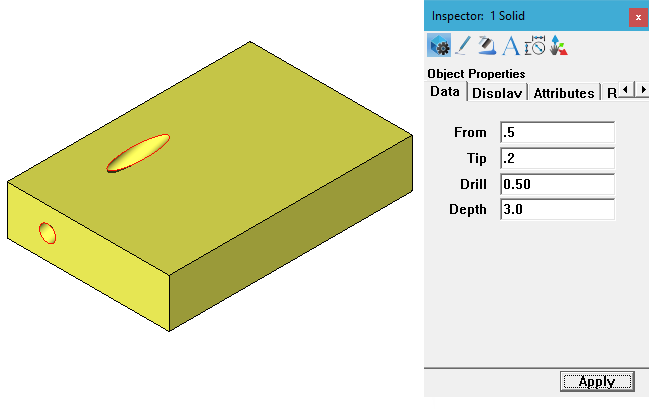

Updating the from Edge and Tip Diameter data
