Hatch & Fill

Modify | Fill

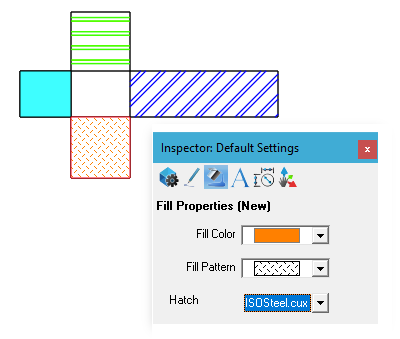

Hatch and Fill patterns are used to fill closed areas. In the example below, a fill pattern is shown. A solid fill area can also be used to create a filled area, shown in the left block, below.

Fill patterns and solid fill

The result is shown below.

Copy the properties using the Eye Dropper

In the example below, a solid fill has been used to identify a part to be lathed.

[This tool is discussed and demonstrated in more detail here](3D Session 08_05.htm#Drawing2).
