Mesh Symmetry

Inspector | Gripper Properties | Mesh Symmetry

The Mesh Symmetry tool creates a symmetrical plane about which facets, edges or vertices can be modified. The resulting modification will be symmetrical about the plane.

The Mesh Symmetry tool displays its own transparent plane in alignment with the drawing axis which can be moved, scaled or rotated about its own axis.

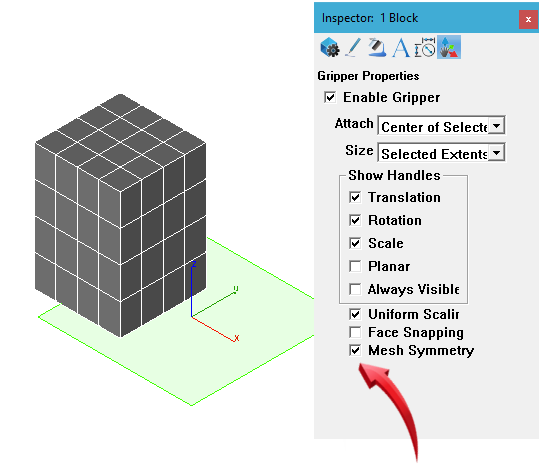

In the example below, the Gripper and Mesh Symmetry is enabled in the Inspector. A sub-divided box was drawn using the Mesh Block tool. The view is set to Isometric and the Show Axis is activated.

Mesh Symmetry Plane activated
