Pressure deform

Modify | Solid Direct Edit | Dome

The face of a solid can be modified by applying a uniform pressure load to the surface of a solid. This is referred to as Deformable Modeling.

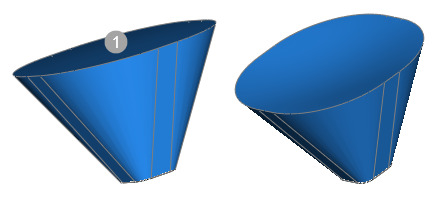

In the example below, a positive gain is given on the top face of the solid.

In the example below, negative pressure is applied to the top face.

Factors which influence the result of pressure load on a facet are :

Gain : The total pressure applied over a specified area.

Stretch : Controls the flexibility factor.

Bend : Controls the torsion (twisting) value to prevent sharp edges.

Resolution : Controls the internal matrix (grid) to allow for a higher or lower degree of flexure.

The calibrations above are controlled in the Inspector. Examine some of the modifications made to the face of the solid.
