Isometric Grid

An Isometric Grid creates an isometric pattern using either the top, front or side view. Below is an example of an isometric grid using the top view.

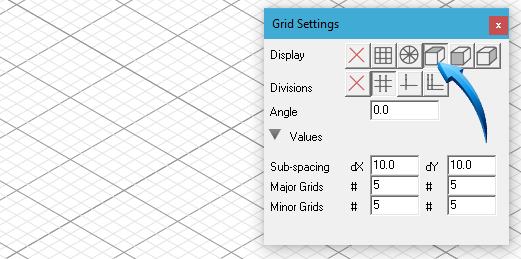

Isometric grid using top view

WorkPlane & Grid

The Grid and WorkPlane are frequently used together to create a better visualization of the planar work-surface when working in 3D. The WorkPlane icon is activated when the grid is displayed, but the grid can be used independently of the WorkPlane by switching off the display of the WorkPlane using WorkPlane > View > Show WorkPlane.

In the example below, the WorkPlane is seated on the vertex shown by the arrow. The WorkPlane and Grid are in the same plane.

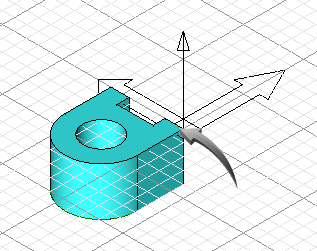

WorkPlane seated on top corner vertex, shown by arrow

When the WorkPlane is dragged from its origin to the vertex on the base of the solid, the Grid moves into the same plane as the WorkPlane, shown below.

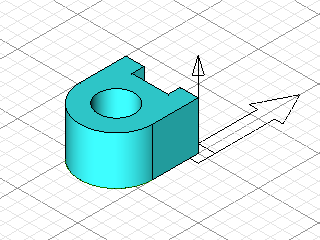

WorkPlane dragged to bottom vertex, WorkPlane automatically moves into the same plane.
