Naming the Views

The name of the view can be inserted using the Properties option. Double click onto the upper left corner of the frame containing the sketch, above left.

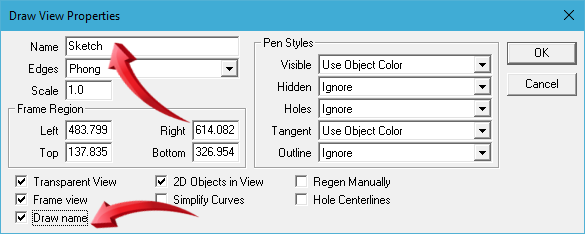

Input a name for this view, in this example, the name ‘Sketch’ was used, shown below. Check the option for ‘Draw Name at the bottom left of the Draw View Properties Box.

Creating a Draw View name

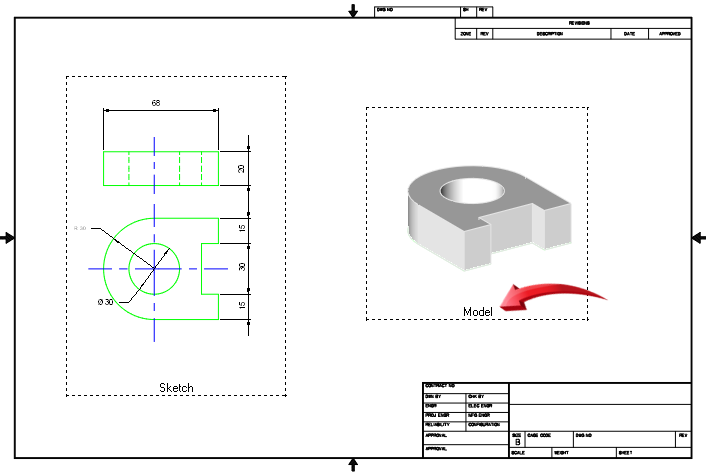

Repeat this, naming the second frame ‘Model’ shown below.

Applying the name to the frame
