Surface Modeling

Surface Modeling refers to the functional skin of an object whereby a skin is stretched over the surface of an object connecting the edges, faces and vertices. The surface can have continuous curvature with the ability to exert flexible design control over the surfaces, edges and vertices.

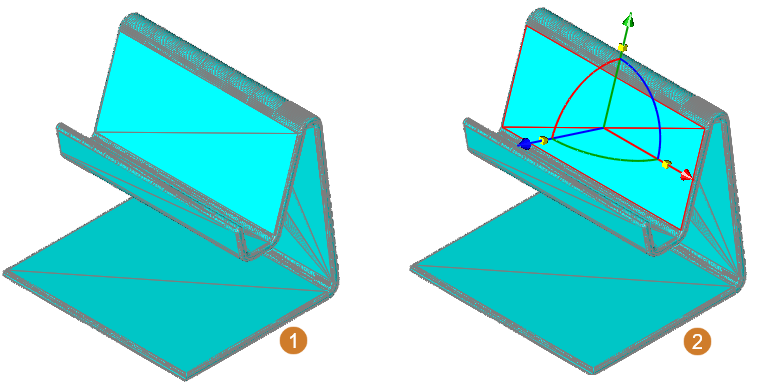

In the example below left, the structural surface lines are shown connecting the faces, edges and vertices.

By using the Select****Deep, a single face can be selected and design control can be exerted over the selected surface only.

[](ftp://[email protected]/home/tricad.co.za/public_html/2020-1/SharkCAD/Videos/solid from curves.mp4)

Mesh Modeling

Mesh Modeling covers the object in a polygonal cage, subdividing the surface into quad polygonal segments suitable for sub-divisional modeling. The polygonal cage can be subdivided into a tighter or looser matrix to exert infinite modeling control over the mesh surface.

In the example below, a Mesh Block of 50x50x50 is drawn with an equal distribution of polygonal mesh segments of 4.

By using the Select Deep tool to select the faces shown in object 2 and using the gripper handle to move these faces forward, the result shown in object 3 is produced. Note how associated faces, edges and vertices maintain their relationship to the moved faces.

Faces of the Mesh Block modified using the gripper
