Auto Constraint

Window | Constraints | Auto Constraint

The Auto Constraint feature will insert all implied constraints to an object. In the example below, the Auto Constraint tool is selected and the entire sketch is selected using a window selection. All implied constraints such as horizontal, vertical, parallel and coincident constraints have been added to the sketch shown below right.

To do this, select the Auto Constraint tool, then select the sketch objects using a window selection. All relevant constraints will be added. Constrains are removed by selecting the relevant constraint and using the Delete keyboard key.

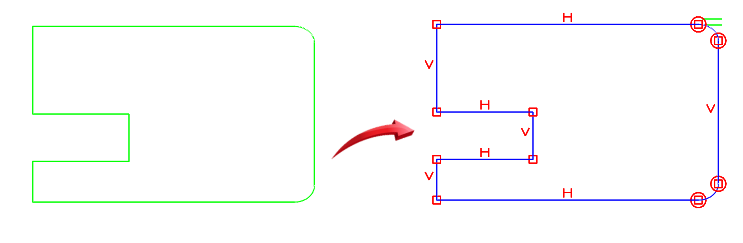

Implied constraints added to entire sketch
