Parallel Constraint

Window | Constraints | Parallel

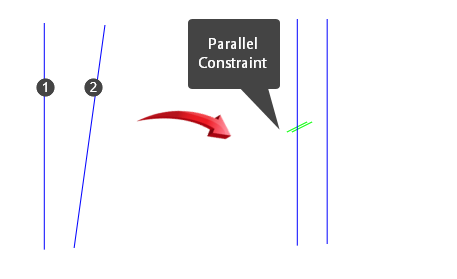

Adjusts the planar integrity of the second line so that it aligns to a parallel plane with the first selected line. In the example below, the order of the line selection is shown. Line 2 is aligned to line 1 to create a parallel condition between the 2 lines.

Creating a parallel condition between 2 lines
