Show/Hide Features

The context menu, activated by positioning the cursor over an object and right-clicking, provides an array of display options helpful when viewing multiple parts.

Hide

This feature hides in the editor only the part over which the cursor is placed. This hides only the part, allowing the interior of other assembled parts to be visible.

This is done by right-clicking over a part and selecting Hide.

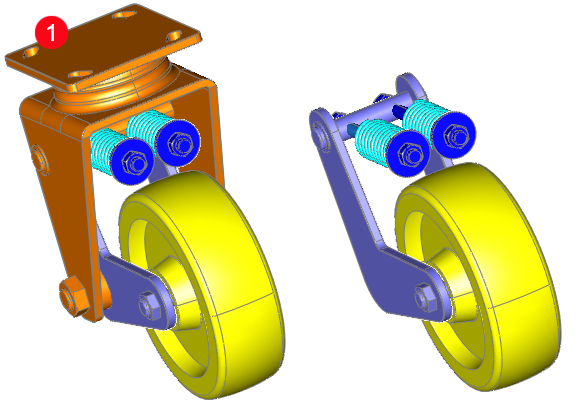

In the example below, the cursor is placed over the part shown by point 1. By right-clicking and selecting Hide, the result shown below right is displayed.

Hiding Part 1

Show All

Objects

When parts are hidden in the editor, the hidden objects can again be viewed by right-clicking anywhere in the editor and selecting Show All.

All objects, including parts which were previously hidden will again be displayed in the editor.
