User SPECIFIED

By selecting the options in the edit bar, a shadow and reflectance can be shown, relative to the WorkPlane.

In the example below left, the Shadow On and Drop Shadow options are activated.

To render the part to the user-defined settings, left click anywhere in the editor.

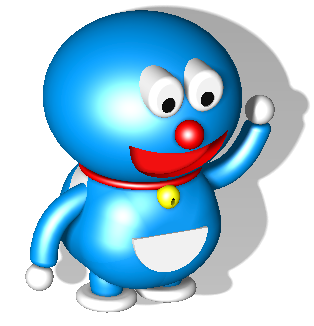

Drop Shadow activated

In the example below, the Shadow On and Drop Shadow and Drop Reflectance options are activated.

Rendering showing Drop Shadow, left and Drop Reflectance, right
