Parallel Line

Draw > Line > Parallel

Creates a parallel line at a specified offset distance from an existing line.

The distance is input into the Offset field.

The newly created line is inserted onto the current layer.

Select the Parallel Line tool from the toolbar, or use Draw > Line > Parallel Line.

Select the bottom horizontal edge shown below.

Selecting the bottom horizontal line to offset

Drag the offset in an upwards direction shown below.

Indicating the direction of the offset

Left click to place the new line, then TAB to the Offset field an input 10.

The result is shown below.

Parallel line created at a distance of 10

Select the right vertical edge, then drag the offset towards the left of this line shown below.

Selecting the vertical edge to offset

Left click to place the new line, shown below.

Indicating the direction of the offset

TAB to the Offset field and input 8. The result is shown below.

Select the newly offset line, then drag the cursor to the left, creating another parallel line to the left, shown below.

Indicating the direction of the next offset

TAB to the Offset field and input 8. The result is shown below.

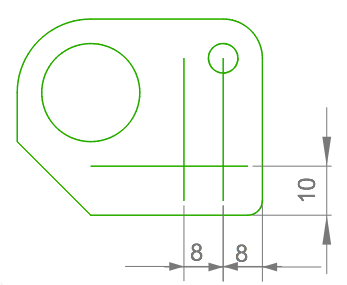

Parallel lines created
