Menu Hierarchy

Estimated reading: 1 minute 14 views

Toolbar items which contain a flyout indicator represented by a small triangle and shown by the arrow below, contain sub-commands, which themselves contain options. In the example below, the Trim tool is accessed, with the Extend option selected.

Arrow shows fly-out option of Trim tool allowing selection of Extend option

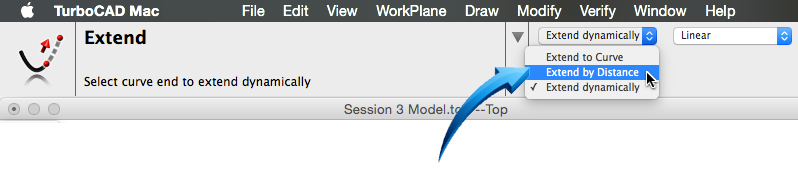

In the illustration below , the Extend tool options are shown in the options field at the top of the editor.

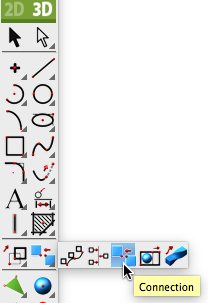

Similarly, a toolbar option can display a sub-menu of branched commands which perform a similar function. In the example below, the Assemble by Connection tool is selected.

Selecting the Assemble by Connection tool

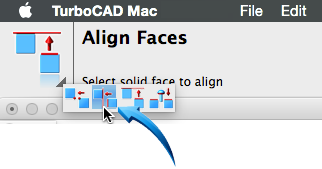

After this tool is selected, a sub-menu of commands such as Align FacesMate Faces etc can be selected from the options menu at the top of the editor and shown below.
