Boolean Functions

Placing text, company logos, or complex patterns onto 3D surfaces can be a daunting task. Especially if you need to preserve size and scale of the details from the 2D shape to the 3D surface.

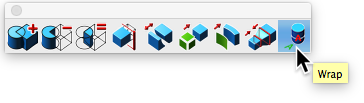

The new Wrap tool introduced in V12 maps text or planar surfaces onto a 3D solid model. The results are perfect for imprinting, embossing, or engraving 2D shapes onto 3D surfaces.

Highlights of the wrap implementation:

Imprint

The imprint option takes the 2D wrapping surface and creates new regions on the resulting 3D surface. These new regions are used to apply color or textures, typically for visualization purposes.

For example, if you are designing a car and need to place a sponsor logo, the imprint may be just the tool you are looking for.

Emboss

The emboss option takes the 2D wrapping surface, imprints regions onto a 3D surface, and then adds offset faces to the part.

Engrave

The emboss option takes the 2D wrapping surfaces, imprints regions onto the 3D surfaces, and then subtracts offsets to the part.

For example, if you are designing a ring and want to place an inscription on the inside the ring, you would use the engrave option along with text.

Using the Engrave tool to wrap text on complex surface
