Window | Woodworking | Pocket Hole

This woodworking feature creates an angled counter bore through a solid object, creating its own part within the solid.

The angle, depth, tip diameter and bore diameter are input into the edit fields after selecting the edge and face.

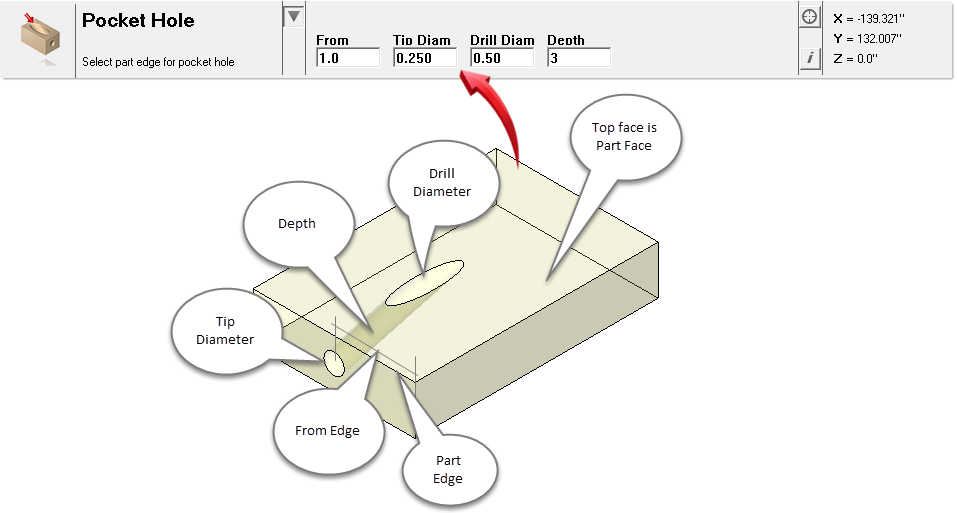

In the example below the solid measurements are Length = 2; Width = 3 and Height = .6 and the Pocket Hole dimensions are shown by the arrow.

In the illustration above, the part edge and face are shown.

Features of the Pocket Drill tool
