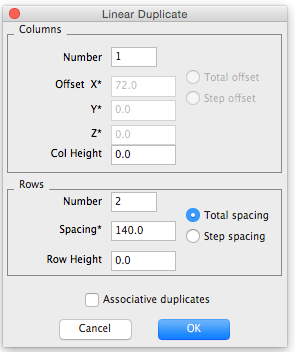

Modify | Transform | Linear Duplicate

This duplication tool allows objects to be copied in a rectangular manner by specifying the distances between the objects on the horizontal and vertical axes.

The distance between the objects is referred to as the cell distance.

Objects which are duplicated along the horizontal axis are referred to as columns ; objects which are duplicated along the vertical axis are referred to as rows.

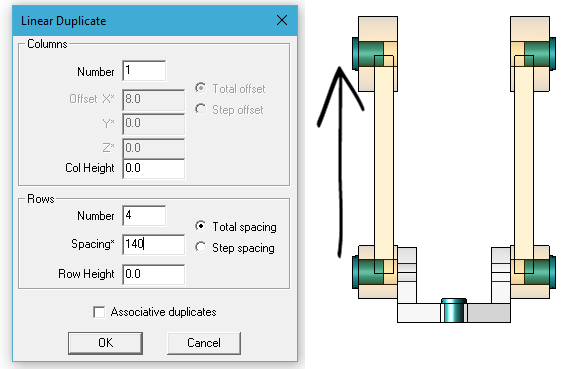

In the example below, the bottom row of fixings has been arrayed using a row distance of 140.

Linear Duplicate using Rows only. Row distance from bottom fixings to top = 140
