This assembly tool is used for rapid assembly of the selected face of a part to another, using their common central axis. The moving part is rotated and aligned during the assembly.

In the example below, the underside face of Part 1 will be rotated and assembled onto the corresponding face of Part 2. Both parts will be aligned by their common central axis.

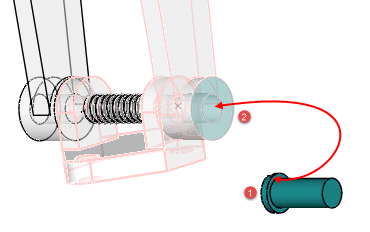

Using the Magnet tool to assemble the underside face of Part 1 to the outer face of Part 2

Illustration below shows parts aligned and assembled by their common central axis.

Parts assembled and aligned using the Magnet tool
